TAP DRILL SIZE CHART FOR NPT THREADS (National Pipe Threads)
| NPT Size | Tap Drill Size (in.) | (Decimal) (in.) |
|---|---|---|
| 1/8 - 27 | "Q" | (0.332) |
| 1/4 - 18 | 7/16 | (0.438) |
| 3/8 - 18 | 9/16 | (0.562) |
| 1/2 - 14 | 45/64 | (0.703) |
.
In this regard, what size hole do I drill for a 1/4 NPT tap?
| Tap size | Threads per inch | Drill size w/ taper pipe reamer |
|---|---|---|
| 1/16 | 27 | 15/64 |
| 1/8 | 27 | 21/64 |
| 1/4 | 18 | 27/64 |
| 3/8 | 18 | 9/16 |
One may also ask, how do you size an NPT? As a general “rule of thumb” an NPT thread is approximately 1/4″ (0.25”) larger than its “name.” For a 1/4″ NPT fitting the “nominal” OD is 0.533”. NPT fittings are slightly tapered so the “nominal” diameter is the diameter in the middle of the threaded portion, as measured by the top (crest) of the threads.
Also to know, what size hole do you drill for 1/8 NPT?
If you must drill, an "R" (letter size) drill is more commonly used for a 1/8 NPT tap. 5/16 will work, but will be tight.
How do you drill a hole in a 1/8 NPT?
There is nothing special about it, except the size of the drill you use to drill the hole. For a 1/8 npt tap requires an "R" drill. Run your tap into the hole to the depth of the threads on the tap. Use a 1/8 fitting as a thread gauge to insure you have enough threads.
Related Question AnswersWhat size drill bit do I need for a 1/4 20 tap?

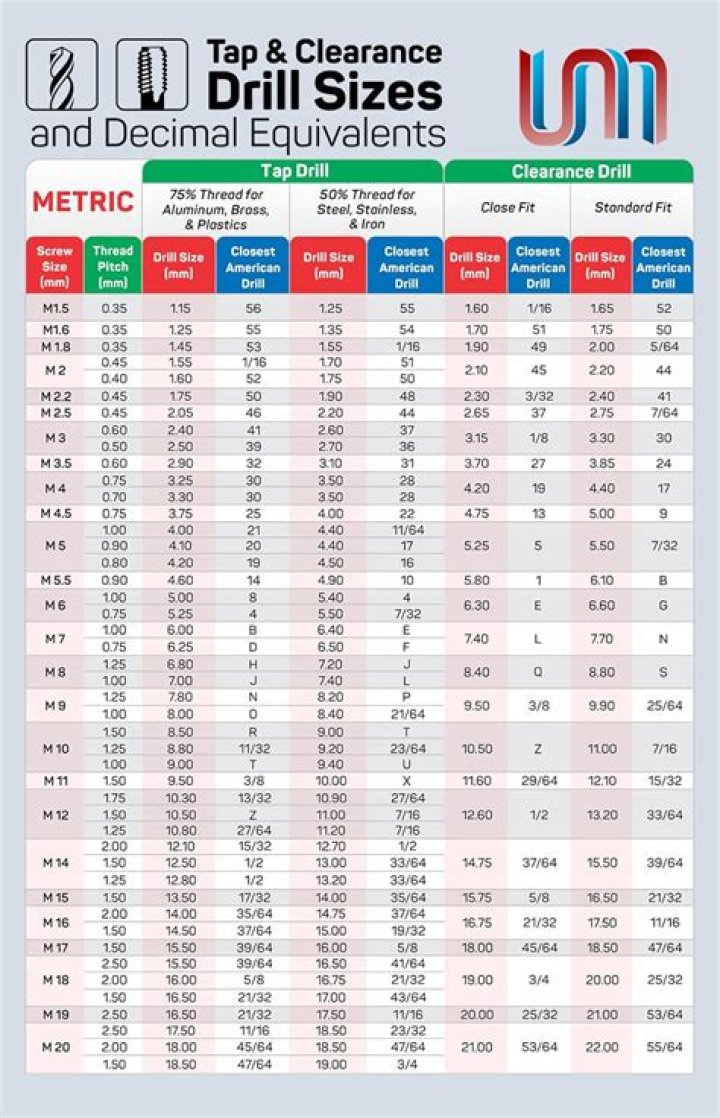

US Tap and Drill Bit Size Table| Tap | Fractional Drill Bit | Number Drill Bit |
|---|---|---|
| #12-24 | 11/64" | 16 |
| 1/4"-20 | 13/64" | 7 |
| 1/4"-28 | 7/32" | 3 |
| 5/16"-18 | 17/64" | - |
What size drill bit should I use?
How to Choose Drill Bits by Size- Use a bit 1/64” smaller than the target hole size for softwoods.
- Use a bit exactly the same size as the hole when working on other materials.
- If you're not sure which to select, choose a drill bit 1/64” larger than the hole you wish to create.
What is the diameter of 1 8 NPT?
NATIONAL PIPE TAPERED THREAD (NPT)| Nominal Pipe Size (inch) | Number of threads per inch | Outside Diameter (inch) |
|---|---|---|
| 1⁄16 | 27 | 0.3125 |
| 1/8" | 27 | 0.405 |
| 1/4" | 18 | 0.540 |
| 3/8" | 18 | 0.675 |
What size drill bit do I use for a 5/16 tap?
OBW0549. Looking at the "Tap Drill Chart" section at the bottom, they recommend an "F" drill for a 5/16"-18 fastener. Then, looking up above at the "Decimal Equivalent Chart" section, an "F" drill measures 0.257", about halfway between 1/4" and 17/64".What does 1 4 inch NPT mean?
Specifications. NPT is defined by ANSI/ASME standard B1.20.1. The taper rate for all NPT threads is 1 inch of diameter in 16 inches of length (3⁄4 inch per foot or 62.5 millimeters per meter) measured by the change of diameter (of the pipe thread) over distance of thread.How deep should a NPT tap go?
To do it right, you need to use a tapered reamer on the holes before you tap them to get a full thread. That's a tough one. You really need a plug gauge to be accurate. You can get fairly close by going to a depth of about 2/3rd's of the thread length of the tap.What is the formula for tap drill size?
Tap-drill diameter equals nominal diameter minus thread pitch. I quickly calculate proper tap-drill diameters using this simple formula. Tap-drill diameter equals nominal diameter minus thread pitch. For example, drill size for a 3/8-16 thread is 0.375 0.0625 (pitch) = 0.312 in.What size drill bit do I need for a 1/2 NPT tap?
TAP DRILL SIZE CHART FOR NPT THREADS (National Pipe Threads)| NPT Size | Tap Drill Size (in.) | (Decimal) (in.) |
|---|---|---|
| 3/8 - 18 | 9/16 | (0.562) |
| 1/2 - 14 | 45/64 | (0.703) |
| 3/4 - 14 | 29/32 | (0.906) |
| 1.0 - 11•1/2 | 1•9/64 | (1.141) |
What size hole do I drill for a 1/2 inch tap?
| To Tap This Size Screw Or Bolt: | Use This Drill Bit: | (Closest Fractional:) |
|---|---|---|
| 1/2-13 NC | 27/64" | 27/64" |
| 12mm-1.25mm* | 10.9mm | 27/64" |
| 1/2-20 NF | 29/64" | 29/64" |
| 1/2-24 NS | 29/64" | 29/64" |
