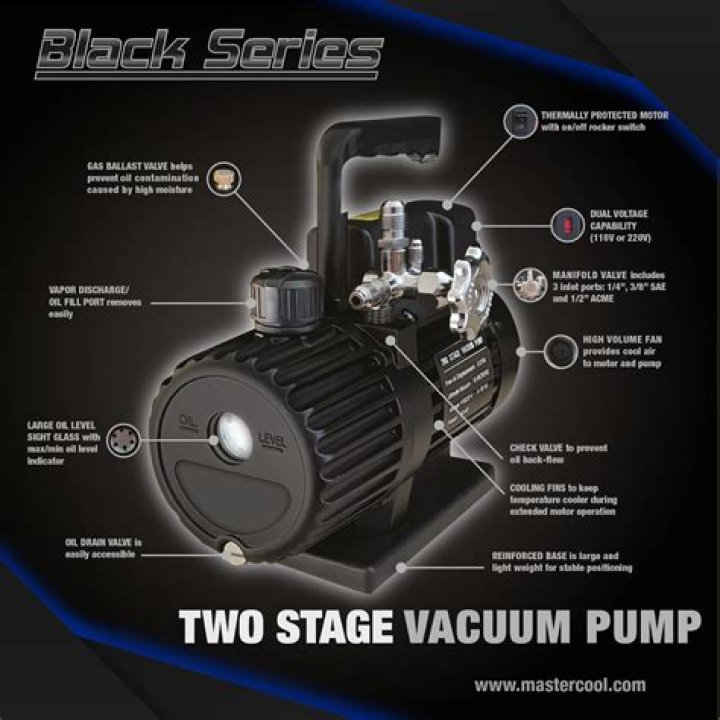

2 stage pumps are more expensive than a 1 stage pump because they have a high vacuum stage what we refer to as an exhaust stage. This 2nd stage serves to help speed the pumps performance curve from about 150 micron or . 150mm down to below 1 micron (.
.
Herein, how does a 2 stage vacuum pump work?
A two stage design has two rotors and vanes. This means that the first stage generates vacuum and the second stage cleans the system, leading to a deeper ultimate vacuum level. As a result, two stage pumps can produce a deeper vacuum than single stage pumps.
Subsequently, question is, what's a vacuum pump used for? Vacuum pump mechanism is used to remove air or any gas particles from the container that creates vacuum in the vessel. It is used for various industrial applications. It is used in electronics manufacturing units to produce CRT tubes, electric bulbs and lamps, semiconducting materials, glass coating etc.
Furthermore, what is the difference between a single stage and 2 stage vacuum pump?
Single Stage Vs. Two stage pumps basically have two rotors and two sets of vanes. The first stage generates a medium vacuum and the second stage processes the exhaust of the first stage to create a better vacuum. As a result, two stage pumps can produce a deeper vacuum than single stage pumps.
How does a single stage vacuum pump work?
Single Stage Liquid Ring Vacuum Pump. This force holds the liquid ring against the inner wall of the pumping chamber. Since the impeller is located eccentric to the pumping chamber, the depth of entry of the blades into the liquid ring decreases and increases as the impeller rotates.
Related Question AnswersHow much vacuum can a vacuum pump pull?
Depending on pump design, the vacuum limit ranges from 28 to 29.5 in. -Hg or about 93% or 98% of the maximum theoretical value. For some pump types, the maximum vacuum rating will be based on this practical upper limit.How long should an AC system hold a vacuum?
Vacuum pressure should be tracked and should reflect up to 27 Hg or aptly 29 inches. When concerned as to how long to vacuum car ac system, you should know that it would take around 30-45 minutes. This is enough time period to get rid of moisture and dust inside the AC system.How does a mechanical vacuum pump work?
A vacuum pump removes gas (usually air) from an enclosed sealed volume and by doing so creates a partial vacuum (pressure < atmospheric pressure). You turn the vacuum pump on and it sucks the air out of the sealed bottom chamber. This causes the liquid phase of the mixture to fall into the bottom chamber.What is CFM for vacuum pump?
The first is the term CFM which stands for Cubic Feet per Minute. This is a measurement of the speed of the vacuum flow. This can be equated to a car's top speed. You'll see this term most often on electric rotary vane pumps or piston pumps (reverse air compressors).How does a vacuum pump system work?
The vacuum pump functions by removing the molecules of air and other gases from the vacuum chamber (or from the outlet side of a higher vacuum pump if connected in series). While the pressure in the chamber is reduced, removing additional molecules becomes exponentially harder to remove.What type of oil is used in a vacuum pump?
mineral oilWhat is a good AC vacuum pump?
These are our recommendations for the best HVAC Vacuum pumps: ZENY 3,5CFM Single-Stage Vacuum Pump. Kozyvacu TA350 Single-Stage Rotary Vane Vacuum Pump. Robinair VacuMaster Economy Vacuum Pump - 2-Stage, 5 CFM.How much is a vacuum pump?
The average cost for a vacuum pump replacement is between $245 and $455. Labor costs are estimated between $70 and $89 while parts are priced between $175 and $366. Estimate does not include taxes and fees. When would you like to drop off your car?How big of a vacuum pump do I need?
Rule of Thumb for Selecting the appropriate Vacuum Pump for your Acrylic Vacuum Chamber| Acrylic Chamber Volume (cubic feet) | Recommended Vacuum Pump CFM |
|---|---|
| Less than 1 | 3.0 or less |
| 1 to 2 | 3.0 to 5.0 |
| 2 to 4 | 5.0 to 7.0 |
| 4 or more | 7.0 or more |
What is ultimate pressure?
ultimate pressure. In a vacuum pump system, the lowest pressure that can be reached within a realistic evacuation time is called the "ultimate pressure."What does Micron mean in vacuum?
Micron is a unit of measurement starting from a perfect vacuum (no pressure) that is expressed in linear increments. One inch= 25,4000 microns thus one micron= 1/25,400 of an inch. When discussing vacuum in terms of microns, this refers to total ABSOLUTE pressure as opposed to GAUGE pressure.How do I choose a vacuum pump?
Also consider the following characteristics, which may influence which vacuum pump you choose:- Chemical compatibility.
- Pumping speed (volume flow) and pressure requirements.
- Pump Installation.
- Pump Maintenance.
- Costs.
