How much does manufacturing a PCB cost?

In general, the cost to produce a PCB will cost between $10 and $50 per board. The actual price will be determined by the manufacturer and could be higher or lower based on the components, size, and type of material used.

How do you manufacture a PCB board?

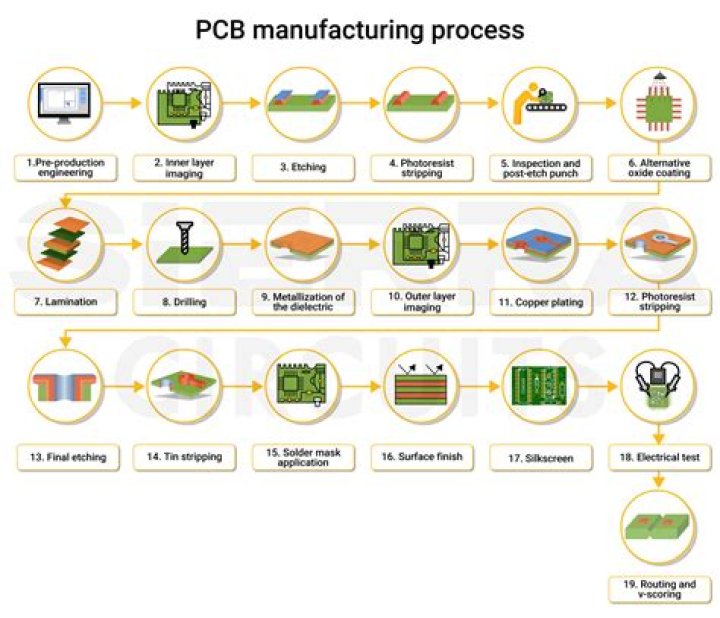

How Is a PCB Manufactured?

  1. Step One: Designing the PCB.
  2. Step Two: Design Review and Engineering Questions.
  3. Step Three: Printing the PCB Design.
  4. Step Four: Printing the Copper for the Interior Layers.
  5. Step Five: Etch the Inner Layers or Core to Remove Copper.
  6. Step Six: Layer Alignment.
  7. Step Seven: Automated Optical Inspection.

Is it hard to make a PCB?

It is hard to do two sided boards (not impossible, but hard). You don’t get plated through holes, so you have to use wires or rivets to connect the sides. You may not have thought of it, but that copper connecting both sides on a commercial PCB add a lot of strength to the PCB tracks.

How much do PCB designers charge?

Most engineers specializing in PCB design charge between $95 and $145 an hour.

Which PCB technology is less expensive?

Surface mount technology (SMT) is automated in most modern electronics manufacturing facilities. Not surprisingly, this makes a custom PCB board cost lower on average, at least in terms of labor.

Which etching machine we can use for PCB etching?

chemical PCB etching deviceBB4. The BB4. 3 etching machine is a single-sided and double-sided machine suitable for the production of prototype printed circuit boards.

How do you manufacture a single sided PCB?

PCB Manufacturing Process Steps

  1. Step 1: Design and Output.
  2. Step 2: From File to Film.
  3. Step 3: Printing the Inner layers: Where Will the Copper Go?
  4. Step 4: Removing the Unwanted Copper.
  5. Step 5: Layer Alignment and Optical Inspection.
  6. Step 6: Layer-up and Bond.
  7. Step 7: Drill.
  8. Step 8: Plating and Copper Deposition.

How do you set up a PCB factory?

The must-have PCB assembly machineries include:

  1. Heat-wave soldering machine.
  2. Oscilloscope (50MHz)
  3. LCR-Q meter.
  4. Function generator.
  5. Power supply (0-30V, 3A)
  6. 4½-digit digital multimeter.
  7. Analogue multimeter.
  8. Magnifying glass fitted with tube light.
