Most dimmers are designed to fit a standard wall box opening, which makes it easy to replace the switch for any incandescent or halogen light with a dimmer. Dimmers come in two basic wiring configurations: standard single-pole dimmers and three-way dimmers. You will need a three-way dimmer and a three-way switch.

.

Just so, do dimmer switches need a neutral?

There are dimmable smart switches on the market that can be installed without a neutral wire. The key is the dimming feature, which turns the flow of power between the light and the switch down to a slight trickle.

do you have to use a special dimmer switch for LED lights? Because of their circuitry, LEDs are not always compatible with traditional dimming switches. If you'd like your LED to be dimmable, you need to do one of two things: find LED bulbs compatible with traditional dimmers, or replace your current dimming switch with a leading-edge (LED-compatible) dimmer.

Additionally, can I replace a dimmer switch with a regular switch?

Replacing a standard single-pole or three-way switch with a dimmer switch is no different than replacing a standard switch. Remember: Dimmer switches don't work on most fluorescent fixtures, and low-voltage lighting requires special low-voltage dimmers. Turn off the power to the switch at the circuit or fuse panel.

How hard is it to install dimmer switch?

  1. Introduction. Installing a dimmer switch is just as easy as installing a single-pole switch, and adjustable overhead lighting is a great improvement that adds appeal to any home.
  2. Turn Off Power. Turn off the power to the circuit at the circuit breaker or fuse box.
  3. Remove the Wires From the Old Switch.
Related Question Answers

Does a dimmer switch reduce voltage?

Dimmers are devices connected to a light fixture and used to lower the brightness of light. By changing the voltage waveform applied to the lamp, it is possible to lower the intensity of the light output. Modern dimmers are built from semiconductors instead of variable resistors, because they have higher efficiency.

Why does my light switch have 3 wires?

The switch in question is a single pole. From it, there is 3 wire cable that leads to a light which then connects to other lights controlled by their own switches. There's no three way set up and this isn't a switch loop either. Plus, The two black wires are using the same terminal.

What is the red wire on a dimmer switch?

Red is the switched lead (or a traveler in a 3-way installation), and is attached to the switched hot going to the light. Red with white is a traveler, used for 3-way installations. In your situation, you'll just cap this one off. Green is ground, and is attached to the grounding conductor.

Are dimmer switches dangerous?

There shouldn't be any dangers if you use a dimmer that's designed for LED lights. Basically, most modern dimmers rapidly modulate between on/off and is safe for long term use in a low state. A side effect however, is that it may generate RF interference or even an audible humming sound.

Can any fixture be put on a dimmer?

Most light fixtures will work with standard dimmer switches, including those with halogen and incandescent lamps. LED fixtures, for instance, may work with standard dimmers, but some may need a specialized dimmer. Likewise, not all compact fluorescent (CFL) light fixtures can be dimmed.

Why does my light switch not have a neutral wire?

There's a reason why almost every smart switch needs a neutral wire attached: it needs to stay powered all the time. This is because the neutral wire for the circuit is actually in the junction box that holds the light fixture, and the two wires coming down to the switch are the "hot" leg that will power the light.

How much does it cost to install a dimmer switch?

The more expensive dimmer switches often include features such as a decorative styles and finish options. It is also important to consider the labor and supply costs that are required to install these switches. The total labor costs for the installation of a dimmer switch range from approximately $58 to $135 per job.

How do old dimmer switches work?

The Old Way. Early dimmer switches had a pretty straightforward solution to adjusting light levels -- a variable resistor. When you put a resistor in a series circuit, the resistor's energy consumption causes a voltage drop in the circuit, decreasing the energy available to other loads (the light bulb, for example).

How do you wire a 3 wire light switch?

Either way, complete these five steps for 3 way light switch wiring:
  1. Turn off the correct circuit at your electrical panel.
  2. Add an electrical box for the second three-way switch in the basement.
  3. Feed a length of 14-3 type NM cable (or 12-3, if you're connecting to 12-gauge wire) between the two boxes.

How does a dimmer switch work diagram?

The diagram below shows this sixtieth-of-a-second cycle. A modern dimmer switch "chops up" the sine wave. If the dimmer is turned to a brighter setting, it will switch on very quickly after cutting off. The circuit is turned on for most of the cycle, so it supplies more energy per second to the light bulb.

Can a light work without neutral?

Yes, there are a few… (read very, very, very few) switches that don't require a neutral, but those will limit you to incandescent only. For those of us using LED, Fluorescent or some other energy efficient bulbs under 20w a neutral is REQUIRED! This is a diagram of a switch with the neutral run directly to the light.

Does the neutral wire carry current?

To sum up, a live wire carries the full load current, while a neutral wire carries some current, only when the loads are not balanced.

How do I know which wire is neutral?

Most likely the neutral wire is white and the hot wire is red or black, but test to make sure. Identify the neutral wire in the fixture by looking at the wires. In most modern fixtures the neutral wire will be white and the hot wire is red or black.

Do most houses have neutral wire?

US houses built from the 1980s on Usually have a neutral at the switchbox. Beginning in 2011, the national electrical code required a neutral at almost all switch boxes. European houses, including the UK, generally don't have a neutral at the switchbox, although some do.

Can I use ground as neutral?

Yes, the ground wire will function as a neutral wire and the ground wire and neutral wire are bonded together at the panelboard. So since the ground and neutral wires are essentially the same and bonded together, why would you not use the ground wire as a neutral? Because it causes the potential for electrical shock.

Why is my dimmer switch not working?

Overlamping a dimmer switch is the most common reason a dimmer switch fails. When a dimmer switch fails, the lights might not go out but remain on, burning up electricity and requiring a change out of the dimmer switch. A power surge can also take down your dimmer.

Why does neutral wire have voltage?

All neutral wires of the same earthed (grounded) electrical system should have the same electrical potential, because they are all connected through the system ground. Neutral conductors are usually insulated for the same voltage as the line conductors, with interesting exceptions.

How do you remove a dimmer switch and a standard switch?

Disconnect the traveler and/or common wires from the dimmer switch. Loosen the screw that holds the grounding wire to the switch and remove the dimmer switch from the switch box. Next, using a pair of needle-nose pliers, wrap the bare ground wire around the green screw at the bottom of the new standard switch.

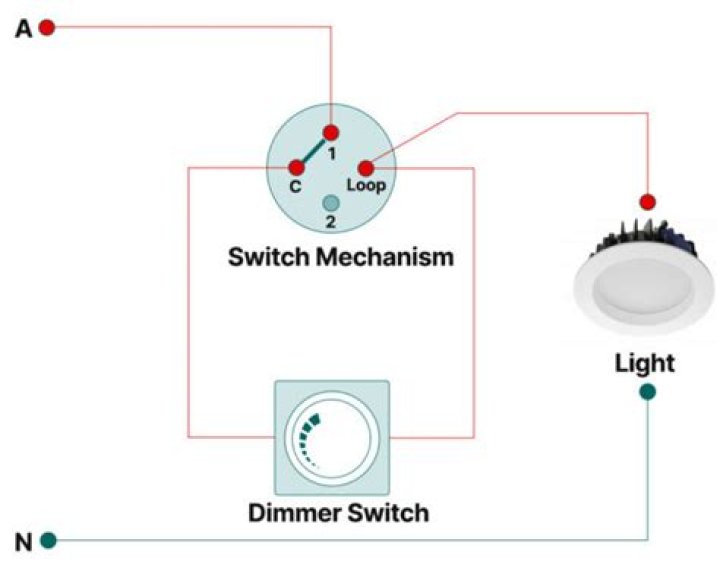

Are dimmer switches wired differently?

Replacing a standard single-pole or three-way switch with a dimmer switch is no different than replacing a standard switch. Remember: Dimmer switches don't work on most fluorescent fixtures, and low-voltage lighting requires special low-voltage dimmers. Turn off the power to the switch at the circuit or fuse panel.
