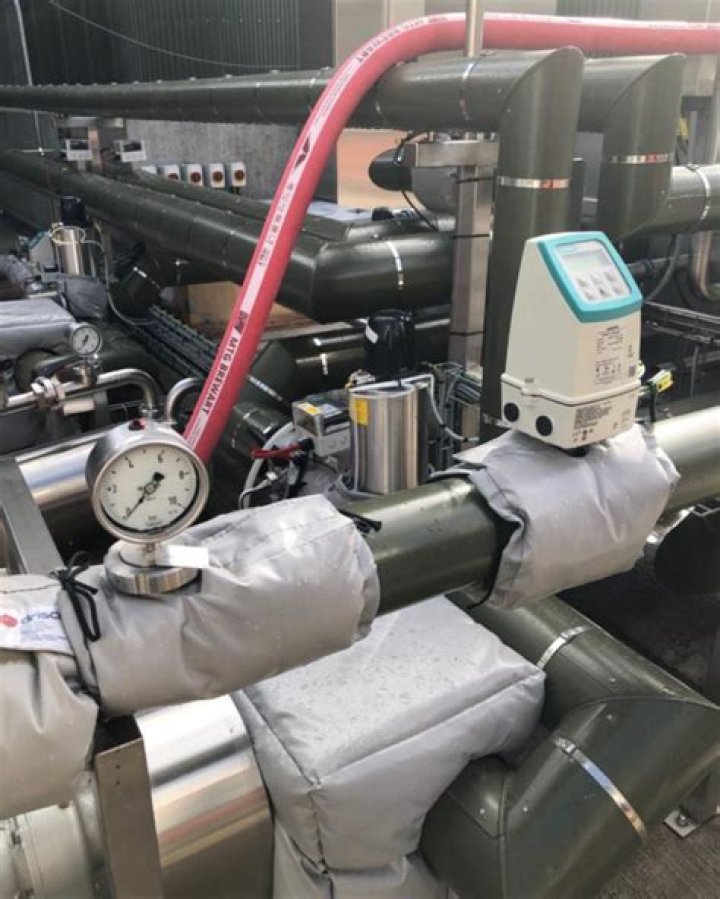

Direct flow measurement Direct mass flow measurement is an important development across industry as it eliminates inaccuracies caused by the physical properties of the fluid, not least being the difference between mass and volumetric flow. Mass is not affected by changing temperature and pressure.
.
Herein, what is the purpose of a flow meter?
A flow meter is a device used to measure the volume or mass of a gas or liquid. Flow meters are referred to by many names, such as flow gauge, flow indicator, liquid meter, flow rate sensor, etc. depending on the particular industry.
Likewise, when measuring the flow of liquid What are the two things to measure? When measuring the flow of liquid, the two things which are needed to be measured are, pressure energy and kinetic energy. Explanation: This flow of liquid may be described as fluid flow, i.e. a part of the fluid mechanics which deals with fluid dynamics. The liquids or gases in motion are called as fluid flows.
how do you measure flow?
Flow may be measured by measuring the velocity of fluid over a known area. For very large flows, tracer methods may be used to deduce the flow rate from the change in concentration of a dye or radioisotope.
How does a flowmeter work?
A flow meter works by measuring the amount of a liquid, gas, or steam flowing through or around the flow meter sensors. Flow meters measure either volume or mass. The flow (Q) is equal to the cross-sectional area of the pipe (A) in a volumetric flow meter, and the velocity of the flowing fluid (v): Q = A * v.
Related Question AnswersWhat is the unit of flow?
In physics and engineering, in particular fluid dynamics and hydrometry, the volumetric flow rate (also known as volume flow rate, rate of fluid flow or volume velocity) is the volume of fluid which passes per unit time; usually represented by the symbol Q (sometimes V?). The SI unit is cubic metres per second (m3/s).How is flow rate calculated?
The flow rate of a liquid is a measure of the volume of liquid that moves in a certain amount of time. The flow rate depends on the area of the pipe or channel that the liquid is moving through, and the velocity of the liquid. The flow rate can be converted to liters per second using: 1 m3/s = 1000 L/s.What are the types of flow meters?
What are the Different Kinds of Flow Meters?- Differential Pressure Flow Meters.
- Positive Displacement Flow Meters.
- Velocity Flow Meters.
- Mass Flow Meters.
- Open Channel Flow Meters.
What are the different types of flow meters?
Common types of differential pressure flow meters are:- Orifice Plates.
- Flow Nozzles.
- Venturi Tubes.
- Variable Area - Rotameters.
How do you measure tap water flow?
The easiest way to get a fairly accurate measure of your water flow rate is to time yourself filling up a bucket. So for example if you fill up a 10 litre bucket in 1.5 minutes, then your flow rate will be: 10/1.5 = 6.66 Litres per minute. Don't get confused between flow rate and pressure.How do you measure pressure?
Pressure is typically measured in units of force per unit of surface area. Many techniques have been developed for the measurement of pressure and vacuum. Instruments used to measure and display pressure in an integral unit are called pressure meters or pressure gauges or vacuum gauges.How is water current measured?
In the simplest method, a current meter turns with the flow of the river or stream. The current meter is used to measure water velocity at predetermined points (subsections) along a marked line, suspended cableway, or bridge across a river or stream. The depth of the water is also measured at each point.How do I choose a flow meter?
Top Tips for flowmeter selection- Do you even need a flowmeter?
- Don't choose on cost alone.
- Know your flow.
- Opt for the widest turndown.
- Pay attention to installation.
- Pick the flowmeter that will offer the best accuracy for the application.
- Use the same supplier for all your flowmetering equipment.
What is the unit for measuring flow?
Flow measurement is the quantification of bulk fluid or gas movement. Volumetric flow rate is sometimes measured in "standard cubic centimeters per minute" (abbreviation sccm), a unit acceptable for use with SI except that the additional information attached to the unit symbol.What does flow rate mean?
To review, flowing fluids are characterized by a quantity called the flow rate, which is defined as the volume of fluid flowing through an area each second. In a pipe or other enclosed region, the flow rate can be expressed in terms of the fluid speed and the cross-sectional area of the pipe.What does a flow meter measure?
Overview of Flow Measurement Flowmeters are devices that measure the amount of liquid, gas or vapor that passes through them. Volumetric flowmeters directly measure the volume of fluid (Q) passing through the flowmeter. The only flowmeter technology that measures volume directly is the positive displacement flowmeter.How is gas flow rate measured?
A flow meter is a precision instrument that measures the rate of gas flow or (liquid flow) in a pipe. There are three main meter styles for flow measurement: Positive displacement meters collect a fixed volume of fluid, then release and refill the fluid, then tally how many times the volume is filled to determine flow.What is a flow unit?
A flow unit is the basic unit of analysis in any given scenario (customer, sandwich, phone call etc.). Flow rate / throughput: The number of flow units (e.g. customers, money, produced goods/services) going through the business process per unit time, e.g served customers per hour or produced parts per minute.What is a flow totalizer?
What is a Flow Meter Totalizer. Simply put, a totalizer is a running total of how much fluid (gas, liquid, steam) has passed by the sensor within a given time. Activate a relay pulse whenever a known quantity of flow has passed over the sensor.What is water flow?
Water flow refers to the amount of water coming out of a hose, faucet or other pipe fixture in a certain amount of time. Water pressure refers to the amount of force that is put on the water to make it move from one place to another, or to the amount of force the water exerts when coming out of the pipe.How do you calibrate a flow meter?
To perform a gravimetric calibration:- Place an aliquot (small portion) of process fluid in a test meter and weigh it for a precise amount of time while it flows 60 seconds.
- Use a calibrated scale to obtain an accurate measurement of the weight of test fluid.
