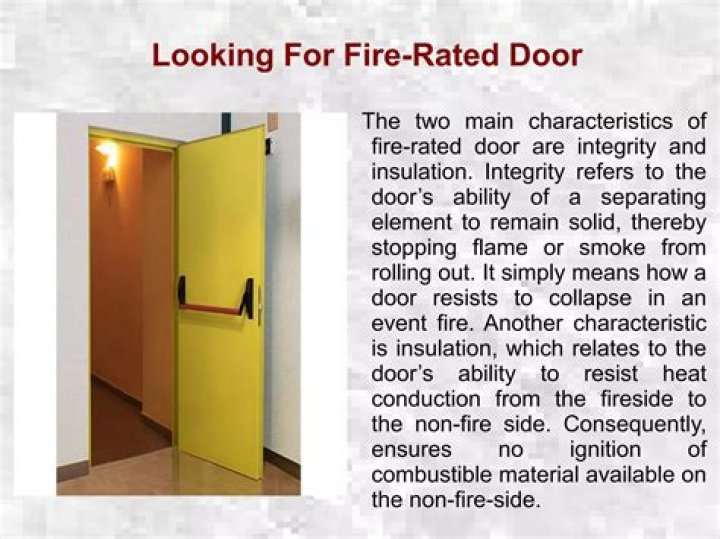

A fire-rated door — or fire-resistant door — is specially constructed to slow or prevent the spread of fire and smoke, according to Ken Canziani, Senior Fire Investigator at EFI Global in Sacramento, CA. “A fire-rated door is a very heavy door made of materials like metal or gypsum,” Canziani explains.
How can you tell if a door is fire rated?
Certification. The most reliable way to identify a fire door is to look for its certification label. All JELD-WEN fire doors will have a certification label on the top edge of the door leaf.
What makes a door fire resistant?
Standards for fire-rated doors Fire-rated glass may contain wire mesh glass, liquid sodium silicate, ceramic glass or borosilicate glass. Wired glass typically withstands the fire. The sodium silicate liquid acts to insulate heat transfer.
What makes a door a fire door?
Fire doors are given a fire-resistance rating, and are usually made of a combination of glass, gypsum, steel, timber and aluminium. They are designed to be kept closed, and any gaps between the wall and the door must be filled with a fire resistant sealant.What material is a fire rated door?
Fire-rated doors are constructed of materials that work together to slow or stop the spread of flames, smoke and, in certain applications, radiant and conductive heat transfer. Common materials include wood, steel, fiberglass and fire-rated glass—or a combination of these materials.
Are composite doors fire rated?
Like with many other standard door types, such as upvc and timber, composite doors are not recognised as fire resistant by the appropriate authorities. Compared to doors that are specifically designed to hold back fire and smoke, standard composite doors will not be able to offer the same level of protection.
Are all steel entry doors fire rated?
Are All Steel Doors Fire Rated? Yes, but just because a steel door is “rated” means that it meets your local code standard.
What thickness is a 1 hour fire door?
External fire doors are generally not required to be FD60, just remember that these doors are extremely heavy and are 55mm thick or more, 4 hinges are recommended.What are the legal requirements for a fire door?
- Any new build or home renovation that has three or more floors must have fire doors fitted to every habitable room that leads from a stairwell. …
- Any door leading from your home into an integral garage must be a fire door.
Ever wondered how to upgrade a normal door into a fire door? … Most modern, normal internal doors cannot be upgraded to achieve 30 or 60 minutes Fire Resistance due to them having a hollow core, being very thin or lightweight and liable to warping shortly after installation.
Article first time published onDoes a fire rated door need a threshold?
Thresholds are not typically required by the codes and standards for fire door assemblies, although there may be a need for them when combustible floor coverings are used, depending on the critical radiant flux and the rating of the fire door assembly.
Can a solid wood door be fire rated?
Older doors will be made up of solid wood rails and stiles with thin wood panels in between. … This type of door can meet the test for fire ratings up to one hour according to NFPA 252 and is frequently used in fire-rated assemblies in residential and business occupancies.
Do external doors need to be fire rated?
A fire exit door on the other hand, is an external door; it can be left open and does not have to be fire resistant. … If it is a security door that is usually kept locked but will be used by members of the public in an emergency situation, it will have to be fitted with a panic or push bar.
Are fiberglass doors fire rated?
Most of our solid-panel fiberglass wood-edge doors can be ordered as a 20-Minute Fire-Rated product. That means the doors are tested to withstand a minimum of 20 minutes of fire exposure at temperatures that reach more than 1400 degrees Fahrenheit! And they don’t split, crack or rot.
What makes a 20 minute fire rated door?
20 minute without hose stream: These are openings that have successfully passed a 20 minute fire test but were not subjected to the hose stream test. These doors bare a label that specifically states ‘Twenty-Minute-Rating tested Without Hose Stream’.
What makes a steel door fire rated?
The short answer is yes, all steel commercial doors are fire-rated. Fire-rated means that they are resistant to smoke and fire, so they meet the minimum standard for fire resistance.
What fire-rating is 20min?
A 20-minute fire-rated door is one that isolates a room during 20 minutes whilst exposed to fire. This kind of door is known as fire-rated EI2-20, and it is useful for places where you want extra protection even though a fire-rating is not demanded. Flame-proof doors usually also have some fire-rating.
Can you get a uPVC fire door?
The Rauferno uPVC fire door system from REHAU offers the safety and security of traditional fire rated products, but with the excellent thermal insulation and soundproofing qualities of modern uPVC.
Are composite front doors fireproof?
Composite fire doors are highly secure, fire resistant, and can be installed in a wide range of properties.
Are PVC doors fire proof?
In fact, whether you are looking for a doors or windows made of UPVC material, make sure that they are highly fire-proof. … UPVC windows and doors are also self-extinguishing. This makes them effective in minimizing fire-related incidents due to extreme heat especially during the summer season.
Do fire doors have to be certified?
It is not a mandatory requirement to be certificated if making certain changes to fire doors manufactured under the BWF-Certifire Fire Door Scheme. Some changes are allowed within the certification scope of the fire door leaf. A fire door is a vital safety device engineered to save lives and property.
What is the normal fire rating of a nominal fire door?
The most commonly specified integrity levels are: FD30 – 30 minutes. FD60 – 60 minutes. FD90 – 90 minutes.
How thick should a fire door frame be?
Construction of a fire door FD30 (30 minutes) fire doors are usually 44/45mm thick, as opposed to the standard door thickness of 35/40 mm, FD60 (60 minute) fire doors most commonly used in commercial settings are normally 54mm thick.
Can a fire door be 35mm?
These are available in a range of thickness options up to 54mm thick, including a 35mm door which can easily be installed into residential properties’ existing sized door frames. …
How often should fire doors be replaced?
Though BWF-CERTFIRE Best Practice Guide suggests every 6 months, we believe that a risk-assessed approach is also appropriate for many. However, if your building is a hotel, or is home to anyone who might not be able to quickly respond to or escape from a fire, 6-monthly checks are essential.
Do fire doors need smoke seals?
ALL fire doors MUST be fitted with the appropriate seals. They are designed to expand under heat, and fill the gaps between the door leaf and frame, thereby preventing the passage of smoke and fire to other parts or compartments of the building.
Are pine doors fire rated?
Help to protect lives if a fire breaks out with our internal 4 panel clear pine fire door, with an FD30 rating. … The fire rating of 30 means the door provides up to half an hour of protection in case of fire.
What is the maximum gap allowed under a fire door?
Gaps between fire doors and the door frame should never be more than 4mm or less than 2mm. It’s recommended to aim for a 3mm gap to ensure adequate room for the intumescent strips to activate in the event of a fire, and for the smoke seal strips (if installed) to not get damaged by the opening and closing of the door.
Can rated doors be undercut?
1.15. 2 of the 2012 Life Safety Code says you must maintain the fire rated door assemblies in accordance with NFPA 80. Any clearance under the bottom of the door (while it is in the closed position) that exceeds ¾ inch will be considered non-compliant.
Do smoke barrier doors need to latch?
The code does not require that smoke barrier doors have latching hardware. Where latching hardware is installed on a smoke barrier door, it must be maintained so that it is functional or be removed.
How thick is a 20 minute fire rated door?
Fireglass® 20 is a 1/4” (6 mm) thick fire-rated and impact safety-rated glazing material. It is listed for use in doors with a fire rating requirement of 20 minutes.
