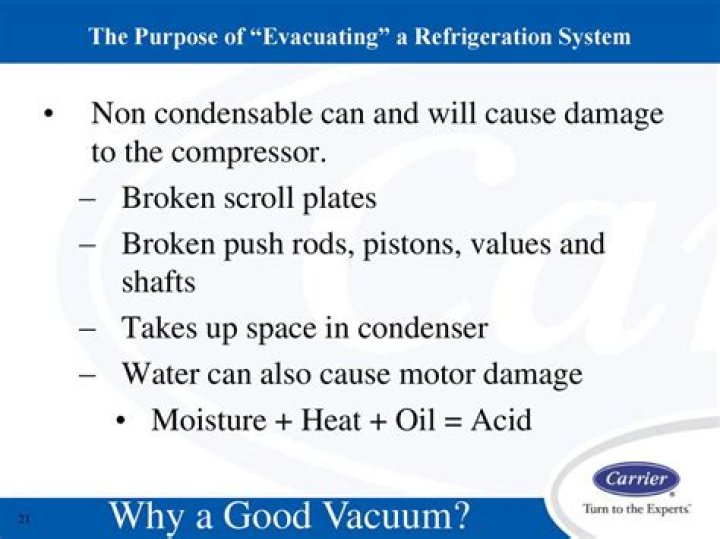

What is the purpose for evacuating a refrigeration system? Evacuating a refrigeration system serves two primary objectives. It removes non-condensable material (air) and dehydrates (removes water vapor).
.
Also asked, why is evacuating a refrigeration system important?
The purpose of evacuating a refrigeration system is to: Remove non-condensable gases and moisture. Oxygen will chemically react with the refrigeration oil and deposits buildup in the discharge valve area, causing compressor motor burn outs.
Additionally, what is the best thing to do before evacuating a refrigeration system? Use dedicated large-diameter vacuum hoses and keep them as short as possible. Keep clean oil in your pump and test the pump regularly. Nix the manifold when evacuating and connect straight from the pump to CRTs. Isolate and test after the desired vacuum level has been achieved to ensure there is no moisture or leaks.
Beside above, what is evacuation in refrigeration?
Refrigerant evacuation is the removal of moisture, air and non-condensable gases from a refrigeration system. During this process, a vacuum pump is used to draw the sealed HVAC system into a vacuum.
What is the purpose of a pump down system?
The purpose of a pump down system is to prevent liquid refrigerant from “migrating” back into the compressor during an off-cycle.
Related Question AnswersHow long should you evacuate an AC system?
When concerned as to how long to vacuum car ac system, you should know that it would take around 30-45 minutes. This is enough time period to get rid of moisture and dust inside the AC system. For effective vacuuming, open the low port's valve of the gauge.What is pump down in refrigeration?
What is a pump down anyway? A system pump down utilizes a solenoid valve in the liquid line, when the system set-point temperature has been satisfied, the solenoid valve will close. The compressor will continue to pump refrigerant into the condenser and/or receiver, drawing it from the low side of the system.What's the minimum velocity in a horizontal suction line for most systems?
Gas velocity in horizontal lines should be a minimum of 500 feet per minute to move oil. In vertical up flow suction lines, the velocity should be at least 1500 ft./min.What is a micron gauge used to measure?
Is used to measure atmospheric pressure. A micron gauge Is often used to measure a vacuum at less than 1mm Hg.Is a vacuum pump the best method of removing large amounts of moisture from a system?
Moisture is the second issue. When it comes to system evacuation only small amounts of moisture are practical to remove this way. "It is not practical to remove large amounts of water with a vacuum pump as boiling water produces large amounts of water vapor.What is a micron HVAC?
A Micron of Mercury (or micron) is a very small/fine unit of measure related to the displacement of a mercury column by atmospheric pressure thus the distance part. In fact, a micron is one-millionth of a meter of mercury displacement. That's a tiny amount of pressure.What does Micron mean in vacuum?
Micron is a unit of measurement starting from a perfect vacuum (no pressure) that is expressed in linear increments. One inch= 25,4000 microns thus one micron= 1/25,400 of an inch. When discussing vacuum in terms of microns, this refers to total ABSOLUTE pressure as opposed to GAUGE pressure.How would you remove moisture from refrigerant in a system quizlet?
To remove moisture from the refrigerant in a system, it should be changed routinely or any time the system is opened. How can you tell through a sight glass if there is excess moisture in the system? Look for color changes in the refrigerant. Using large vacuum pumps can lead to freezing of water in the system.Do I need to add oil after evacuating AC?
Above all, only trained and licensed professionals should work on AC systems. That way, there's no risk of doing any damage to the system, or letting refrigerant vent into the atmosphere. To answer the question title, yes, you will have to add oil to the new refrigerant.Does pulling a vacuum remove oil?
Pulling a vacuum will not remove the oil. Most of the time unless you replace your compressor or accumulator you should not need to add oil.How do you evacuate a refrigeration system?
You will need to evacuate system to 500 microns, then break vacuum with dry nitrogen. Dump nitrogen then evacuate down to 500 microns once again, repeat this process one last time after this.Can you pull a vacuum with a leak?
Never use a vacuum to test for leaks. You will not be able to find a leak under vacuum, and you will contaminate the system with moisture and noncondensible gases. Never pull a vacuum through a Schrader valve. This practice will only increase your evacuation time due to the high restriction it will cause.How do you triple evacuate a refrigeration system?
A triple evacuation process is strongly recommended. For triple evacuation, pump down the refrigeration system to 1,500 microns, and then break the vacuum using dry nitrogen. At 1,500 microns any moisture or ice trapped in the system will outgas.What is the purpose of a triple evacuation?
Triple evacuation — A method of evacuation that initially pulls the vacuum down to between 1,000 and 2,000 microns. Then a small amount of refrigerant or an inert gas such as nitrogen is introduced into the system. The object is for the gas to absorb moisture from the system.Do I have to pull a vacuum on my car AC system?
If you don't vacuum out an AC system prior to refilling it with refrigerant you will not get maximum performance because there will be minor amounts of air (humidity/moisture) in there. SO by vacuuming an AC system we reduce the pressure so that any water in the system will boil away at ambient temperatures.Is 1000 microns a good vacuum?
The following are guidelines for an acceptable standing level of vacuum. For systems containing mineral oil like R22 systems, a finishing vacuum of 500 microns with a decay holding below 1000 microns generally considered acceptable, whether we are talking a new installation or a system opened for service.How do you evacuate a car air conditioner?
How to Evacuate an Auto AC- Connect the manifold air gauges. Manifold air gauges consist of two gauges and three hoses, one red, one blue and one yellow.
- Connect the yellow line to the vacuum pump, then make sure the high and low gauges are closed.
- Open the high and low-pressure valves on the air gauge.
