Once this wire gets melted, the current stops flowing into the circuit and hence the equipment gets saved from high voltage fluctuation. Now, the usual current rating of the fuse wire in the line to feed application of 2kW or more power is 15A. This is the value that is commercially used for construction of fuses.
What is fuse rating unit?
A fuse rating is the current need to blow (break) the fuse. When a fuse has blown it removes electrical power from an electrical circuit. … Thefuse rating is usually defined in ‘amps‘ – amps are the unit of measurement of electrical current.
How do you calculate fuse rating?
The simple calculation is watts divided by volts equals amps. After you have calculated this, it is a simple case of adding around 10% to the value and choosing the nearest fuse to match. This is a more precise method then just guessing should you require a 3, 5, or even 13 amp fuse.
How do I choose a fuse rating?
In order to select the right amperage of the fuse, you first need to know the full-load steady-state current of the circuit at an ambient temperature of 25º C (68º F). Once the current value is determined, then a fuse rating should be selected as to be 135% of this value (taken to the next standard value).Are fuses 100 percent rated?
The use of fuses at 100% of their marked ampere rating depends on their operating environment and the associated components of the electrical system, such as switches and terminations. … Therefore, if the switch is rated/listed for 100%, fuses can be applied at 100% of their ampere rating, too.
What are the 3 types of fuses?
- DC Fuses.
- AC Fuses.
- Cartridge Fuses.
- D – Type Cartridge Fuse.
- HRC (High Rupturing Capacity) Fuse or Link Type Cartridge Fuse.
- High Voltage Fuses.
- Automotive, Blade Type & Bolted Type Fuses.
- SMD Fuses (Surface Mount Fuse), Chip , Radial, and Lead Fuses.
What does MCB mean?
MCB stands for Miniature Circuit Breakers. The MCB is an electromechanical device that switches off the circuit automatically if an abnormality is detected. The MCB easily senses the overcurrent caused by the short circuit.
Can I use a 3 amp fuse in a 13 amp plug?
A 3A fuse is the safest to use and should be used for appliances at 700w or less. Appliances rated above 700w should use a 13A fuse. Be extra cautious when using a 13A fuse and try using a 3A fuse if and when it’s possible.How do you determine what size fuse you need?
B Calculate MINIMUM FUSE AMPERAGE by multiplying product amperage rating by 125%. Minimum fuse amperage provides more protection for the wire but may result in nuisance blows. Example: 80A x 125% = 100A. C Choose FUSE AMPERAGE near the middle of this range.
What are 13 amp fuses used for?Plugs for appliances rated between about 700 watts and 3000 watts (the maximum rating of a wall socket) should be fitted with a 13-amp fuse (coloured brown). For example: 13A Fuse – Washing machine, dishwasher, microwave, kettle, toaster, iron.
Article first time published onCan you put a 15 amp fuse in a 13 amp plug?
Is it okay if I replace my 15 amp round plug into a 13 amp plug? – Quora. Perfectly ok, in fact desirable as you can then fuse in the plug for the appliance it is supplying. Not if you are drawing 15 amps. If the total draw is 13 or less is the only time to change plugs.
What is minimum fuse rating?
For the lighting circuit, the fuse current rating should be minimum 2 times the full load current of the total number of lighting. For individual circuit, the fuse rating should be 1.5 times of the full load current.
Are Class L fuses 100% rated?
The Type L fuse is UL Recognized, for ampere ratings of 100 to 600 amps. Bussmann, Littelfuse and Mersen offer Class L fuses.
What size fuse 12 gauge wire?
Wire GaugeRecommended Maximum Fuse Size8 awg50 amps10 awg30 amps12 awg20 amps14 awg15 amps
What is RCD and MCB?
RCD means Residual Current Device and MCB means Multiple Circuit Breaker. … An MCB will save your home from electrical fires by ensuring that the wires are not overheating and that there is no overload on the various electric circuits. You need to ensure that you have both of them in your house.
What is difference between Fuse and MCB?
Fuse is an electrical device that self-destructs and stops the current flow in a circuit whenever the current exceeds the predefined value. MCBs are resettable circuit protection device that, on the occurrence of faults, stops the current flow in a circuit.
What is difference between MCCB and MCB?
“MCB” stands for “Miniature Circuit Breakers”, while “MCCB” is “Molded Case Circuit Breaker.” The main difference between the two is their capacity, with the MCB rated under 100 amps with an interrupting rating of under 18,000 amps. … Their interrupting rating ranges from around 10,000 amps to 200,000 amps.
What is DC fuses?
DC Fuse. The DC fuse opens or breaks the circuit when the excessive current flow through it. The only difficulty with the DC fuse is that the arc produced by the direct current is very difficult to extinct because there are no zero current flows in the circuit.
What is D type fuse?
D type fuses. D-type (Diazed) fuse cartridges have a bottle-shaped ceramic body with metal end caps and are fitted in screw-in fuse holders. They are available in five different body sizes, with ratings from 2 A up to 200 A (see table). The designation of a size consists of the letter D and a Roman numeral.
What fuse current?
Fusing current: It is the minimum current at which the fuse element melts and thus disconnects the circuit protected by it. Obviously, its value will be more than the current rating of the fuse element.
What size fuse should I use for my amp?
The correct size of fuse to use depends on the amp you are wiring. If your amp has an internal fuse, then your inline car amp fuse should be a bit larger. For instance, if your amp has an internal 20 amp fuse, then you should go for a 25 or 30 amp inline fuse.
What are standard fuse sizes?
Standard sizes for fuses and fixed trip circuit breakers, per 240.6, are 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 110, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500, 600, 700, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000 5000, and 6000 amps.
What fuse do I need for 12v?
if the device load is known in watts, divide the wattage by voltage-(i.e 100watts divided by 12v = 8.3 amps) -use 10 amp fuse.
Can I put a 5A fuse in a 3A plug?
Are you physically capable if putting it in? If so, yes, you can replace a 3A fuse with a 5A fuse.
Can I put a 5A fuse in a 10A plug?
Possibly yes. It is possible to short out a circuit by overdrawing more than 5 Amp by removing the 5 Amp fuse and putting in a 10 Amp fuse.
Can you put a 16 amp fuse in a plug?
No. It’s illegal. Any device that isn’t intended to be fitted with a plug, cannot be fitted with a plug. Any fuses must comply with BS 1362, which allows for a max of 13A.
What are 5A fuses used for?
5A Fuse. Used mainly for lighting circuits.

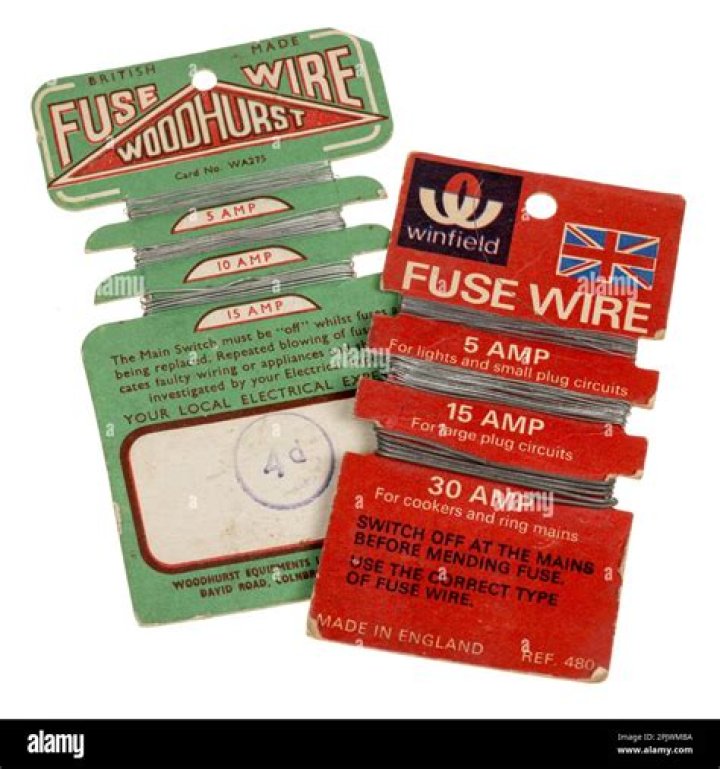

What is 15 amp fuse wire used for?
Each circuit is protected by a breaker or fuse. Bedrooms, living rooms and family rooms where only lights, alarm clocks and other small electrical items are usually used are normally on 15-amp circuits.
Can I replace a 5 amp fuse with a 13 amp?
No. You must use a 5A fuse. Using A 13A fuse is a fire risk. The fuse is there to protect the adapter in case of a fault.
What is a 10 amp fuse used for?
A 10 amp fuse will be used to power and protect a circuit that requires a maximum input current of 10 amps. If due to an electrical fault or overload, a current that is significantly over that rating of 10 amps, the fuse will blow – cut off power by destroying itself.
What is the maximum wattage for a 13 amp plug?
It is important to never overload a plug socket, which is 3000 watts = 13 Amps. Some appliances use more than others. Use the calculator on this page as a guide. Overloading electrical sockets can cause plugs to overheat and result in fire.
