Registered Jack 45

.

Also asked, what is a rj45 cable used for?

RJ45 is a type of connector commonly used for Ethernet networking. It looks similar to a telephone jack, but is slightly wider. Since Ethernet cables have an RJ45 connector on each end, Ethernet cables are sometimes also called RJ45 cables.

Furthermore, what is another name for an rj45 connector? RJ-45 (Registered Jack 45) is a physical interface often used for terminating twisted pair type cables. RJ45 - RJ Stands for registered jack and 4 represents 4 pairs of wire and 5 represents five twist per inch to decrease capacitance effect.

Just so, is Ethernet the same as rj45?

RJ45 is the standard wired Ethernet over copper cable connector. It's what plugs into the back of your computer. The Ethernet standard uses pins that are not connected in the RJ11 connector (and can't be, because the connector is smaller). The real difference in Ethernet cabling is in its category.

What does rj45 8p8c mean?

8P8C describes a type of plastic connector with 8 possible connections (8 positions 8 contacts). RJ45 describes a wiring standard that uses a 8P8C connector defined in Part 68 of the FCC rules (47 C.F.R. Connectors using the distinction Registered Jack (RJ) describe a standardized telecommunication network interface.

Related Question Answers

What is Ethernet cable color coding?

Ethernet Cable Tips: A straight-thru is used as a patch cord in Ethernet connections. A crossover is used to connect two Ethernet devices without a hub or for connecting two hubs. A crossover has one end with the Orange set of wires switched with the Green set.

What is rj45 color code?

RJ45 Color-Coded Scheme
Pin Colored Scheme T-568B (Common)
1 Blue Orange Stripe
2 Orange Orange
3 Black Green Stripe
4 Red Blue

Is rj45 a cat6?

RJ45 will work on Cat6, but there are different types of RJ45 jacks. Some have metal shielding for grounding the cable, some are all plastic, some have plasticy/rubbery 'jackets', some are better quality, some are worse quality.

Where is rj45 connector used?

RJ45 is a type of cable connector which is mainly used in computer networks. RJ45 is mainly used for ethernet networking which is used to connect different type of devices like a switch, hub, PC, router, firewall to each other. RJ45 is the most known and popular connector type in the IT world.

What is the difference between rj45 cat5 and cat6?

The main difference between cat5 and cat6 cables is reduced “crosstalk” and faster speeds in the transferring of data and connection. The speed of a cat5 cable can handle up to 10/100 Mbps (megabytes per second) at 100 Mhz bandwidth, a speed that was quite efficient in earlier applications of the cat5.

What is the end of an Ethernet cable called?

Ethernet cables feature small plastic plugs on each end that are inserted into the RJ45 jacks of Ethernet devices. The term plug refers to the cable or male end of the connection while the term jack refers to the port or female end.

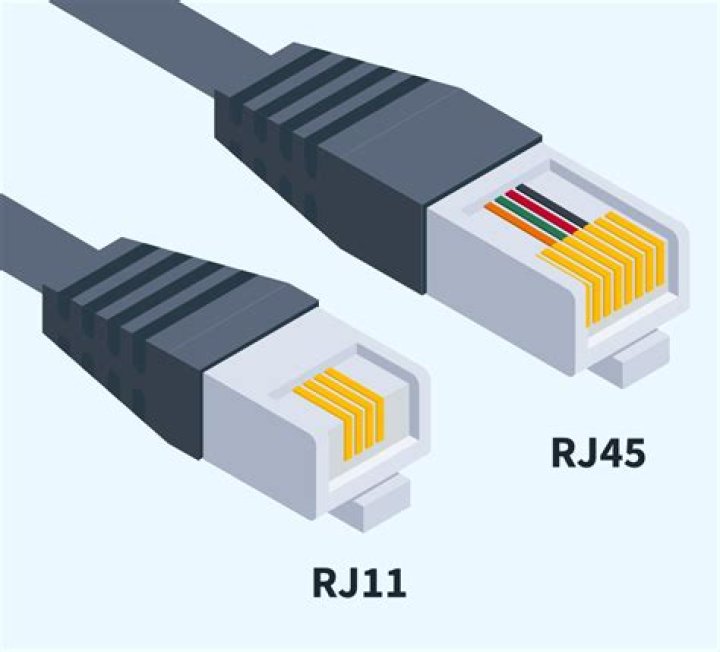

What is difference between rj11 and rj45?

Two of the most common jacks are the RJ45 and RJ11, each with their own specific purpose. The main difference between these two is their actual use. RJ11 is the cable connector that using in telephone sets while RJ45 is used in networking, where you connect computers or other network elements to each other.

Are there different rj45 connectors?

There are two RJ45 pinouts (T568A and T568B), and even though they are technically 8P8C connectors, it is very likely you will hear them strictly referred to as RJ45 connectors, and all documentation surrounding them will use the same terminology. Over time, T568B has become more popular.

Is Ethernet faster than WIFI?

Ethernet is just plain faster than Wi-Fi—there's no getting around that fact. On the other hand, a wired Ethernet connection can theoretically offer up to 10 Gb/s, if you have a Cat6 cable. The exact maximum speed of your Ethernet cable depends on the type of Ethernet cable you're using.

Can you use phone jack for Ethernet?

To convert a phone jack into an Ethernet jack that can be connected to a computer, install a DSL modem using the telephone jack in your home. A few supplies from an electronics shop are needed. Insert the modular plug at the other end of the cord into the “DSL”-labeled modular socket on the back of the modem.

Can I use rj45 for cat6?

Yes. The RJ45 plug is standard and may only have a different coating on the pins to make it a Cat6 compatible vs. You probably won't receive the same speed as if you were using a Cat6 compatible jack.

What is an Ethernet cable used for on a TV?

The Ethernet cable is part of Local Area Networks used to access wireless Internet or cable connections. An Ethernet cord is plugged into a wireless router to transmit the signal to any Web-enabled device. LG is one of the only manufacturers producing televisions with an Ethernet jack, as of August 15, 2010.

How do you tell if it's a phone jack or Ethernet?

Ethernet cables have 8 wires. Phone lines depend on the phone. VOIP phones will use the same 8 wire ethernet cable and there is no way to tell the difference by looking at them. Typical phone lines though use a smaller connector on the end and have either 2 or 4 wires.

How do I know what Ethernet cable I have?

Start with the speed of your home internet connection. If you have gigabit internet, an old Ethernet cable will hold you back. But if you have a slower connection, say 10 or 20 megabits per second, you're good with anything Cat 5 or newer. Next, consider the speed you need for your network.

What size is Ethernet cable?

For most users, the 50 feet Mediabridge Ethernet cable is sufficient enough since it can support both the cat 5e and cat 6 applications.

Can you plug an rj11 into rj45?

RJ11 plugs can permanently damage your RJ45 socket. Data cabling systems normally use RJ45 connectors. It's easy to insert an RJ11 plug into an RJ45 socket and it will probably work for a voice connection if the other end of the link has the right wiring or the correct adapter.

Does Cat 7 use rj45?

Cat5, Cat5e, Cat6 and Cat7 are physically and electrically compatible. The physical connectors for Cat6 and Cat7 cables are still RJ45 plugs, but they're shielded and the standard calls for much less untwisting at the ends of the cable in the connectors than what is permissible for Cat5e.

Are rj9 and rj11 the same size?

Step 1: Gathering the Supplies RJ12 is the most common, being used on flat line cords that connect the base of a telephone to the wall. RJ11 is an older version of RJ12, and they are the same size. The difference is that RJ11 uses four internal wires (called conductors) while RJ12 uses six.

How do I extend cat5 cable?

How to Extend Cat 5 Cabling
  1. Plug one of the 5-port switches into an electrical outlet near the terminus of an Ethernet cable close to its limit of 100 meters, or 328 feet.
  2. Insert an additional long cable into another port on the switch.
  3. Take the second switch into a room where expansion of the number of ports is desired.
