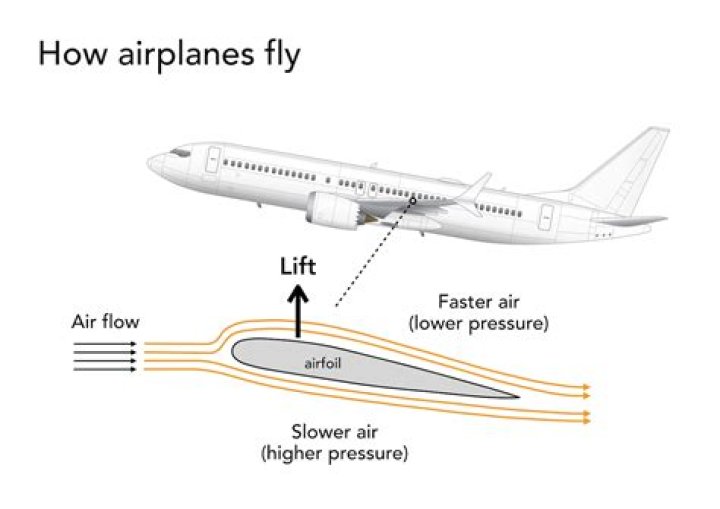

What causes lift on an airfoil?

An airfoil generates lift by exerting a downward force on the air as it flows past. According to Newton's third law, the air must exert an equal and opposite (upward) force on the airfoil, which is lift.

.

In respect to this, what is the Bernoulli explanation of how an airfoil generates lift?

In order to meet up at the trailing edge, the molecules going over the top of the wing must travel faster than the molecules moving under the wing. Because the upper flow is faster, then, from Bernoulli's equation, the pressure is lower. The difference in pressure across the airfoil produces the lift.

Furthermore, how lift is produced? Lift occurs when a moving flow of gas is turned by a solid object. The flow is turned in one direction, and the lift is generated in the opposite direction, according to Newton's Third Law of action and reaction. Because air is a gas and the molecules are free to move about, any solid surface can deflect a flow.

Herein, how does aerofoil shape affect lift?

Any physical body moving through a fluid can create lift if it produces a net turning of the flow. The airfoil shape and wing size will both affect the amount of lift. The ratio of the wing span to the wing area also affects the amount of lift generated by a wing.

What does an airfoil do?

An aerofoil is the term used to describe the cross-sectional shape of an object that, when moved through a fluid such as air, creates an aerodynamic force. Aerofoils are employed on aircraft as wings to produce lift or as propeller blades to produce thrust. Both these forces are produce perpendicular to the air flow.

Related Question Answers

What makes a good airfoil?

Thin symmetrical airfoils are great for aerobatics but not for lift - see the Extra 300 vs a Zenith CH801. A thin airfoil with low camber goes fast but that means landing fast. A thick highly cambered airfoil means you have lots of lift, but will fly slowly. High speed airfoils for high speed flight.

How do you measure wing lift?

The lift equation states that lift L is equal to the lift coefficient Cl times the density r times half of the velocity V squared times the wing area A. For given air conditions, shape, and inclination of the object, we have to determine a value for Cl to determine the lift.

How do you calculate lift?

The modern lift equation states that lift is equal to the lift coefficient (Cl) times the density of the air (r) times half of the square of the velocity (V) times the wing area (A).

How do wings lift planes?

Airplane wings are shaped to make air move faster over the top of the wing. When air moves faster, the pressure of the air decreases. So the pressure on the top of the wing is less than the pressure on the bottom of the wing. The difference in pressure creates a force on the wing that lifts the wing up into the air.

What wing shape produces the most lift?

Here are some simulations I ran using NASA's FoilSim with each aerofoil at 7 degrees and 100KTS. You can see that the Symmetrical aerofoil has the Best L:D. ratio, followed by the Flat Plate and then the Conventional aerofoil however, the conventional aerofoil creates the most lift at this speed.

How does a symmetrical airfoil create lift?

A symmetrical aerofoil only produces positive lift when it is at a positive angle of attack (LE higher than TE). The airstream splits between top and bottom at the stagnation point which is in front of and below the centre of the nose radius. The distance 'over the top' is therefore greater than 'over the bottom'.

How does an airfoil really work?

An airfoil is like a slice of a wing and because of its shape it produces lift. Wings are shaped like teardrops. A wing's top is curved and its bottom is flat. Since its top is curved, air on top of a wing moves faster than air on bottom.

What is airfoil theory?

Thin airfoil theory is a simple theory of airfoils that relates angle of attack to lift for incompressible, inviscid flows. The theory idealizes the flow around an airfoil as two-dimensional flow around a thin airfoil. It can be imagined as addressing an airfoil of zero thickness and infinite wingspan.

Which airfoil produces the most lift?

high camber aerofoil

What are the three major factors that affect lift?

The lift of a wing may be increased by the angle of attack, airfoil shape, outline shape, airspeed, wing size, and air density. The angle of attack is the angle formed by the airfoil chord and relative wind.

Why do flat wings provide lift?

How does a flat wing generate any lift if both sides have the same air pressure? The two sides do not have the same pressure. The main reason is the Kutta condition that must be satisfied at the trailing edge: this will create circulation around the flat plate, generate a pressure difference and thus generate lift.

What affects how much lift a wing produces?

The size and shape of the wing, the angle at which it meets the oncoming air, the speed at which it moves through the air, even the density of the air, all affect the amount of lift a wing creates.

What is the best wing shape?

A: An airplane's wing has a very special shape called an airfoil. It looks a bit like a teardrop, curved on top and flat on the bottom. The curved top forces the air above to move faster, and, according to Bernoulli's principle, fast air has lower pressure.

Does lift increase with speed?

Lift=0.5* Density of air* Lift Coefficient* Wing area* Square of Speed. Therefore we see that in terms of speed, lift increases with square of the speed. or in other words as speed vector increases, the lift component also increases proportionally."

How does surface area affect lift?

The total aerodynamic force is equal to the pressure times the surface area around the body. Lift is the component of this force perpendicular to the flight direction. Like the other aerodynamic force, drag, the lift is directly proportional to the area of the object. Doubling the area doubles the lift.

When would an airfoil not produce any lift?

For symmetrical wings, the wing wont generate any lift if the flow see's the wing symmetrically, so that inherently means that a symmetrical wing with 0 angle of attact would not produce any lift.

Why does angle of attack increase lift?

The Angle of Attack for an Airfoil The Newton's 3rd law reaction force upward on the wing provides the lift. Increasing the angle of attack can increase the lift, but it also increases drag so that you have to provide more thrust with the aircraft engines.

What is the correct theory of lift?

The theory states that the air molecules have to reach the trailing edge at the same time, and in order to do that the molecules going over the top of the wing must travel faster than the molecules moving under the wing.

What is lift and drag?

Weight is the force of gravity. It acts in a downward direction—toward the center of the Earth. Lift is the force that acts at a right angle to the direction of motion through the air. Drag is the force that acts opposite to the direction of motion. Drag is caused by friction and differences in air pressure.
