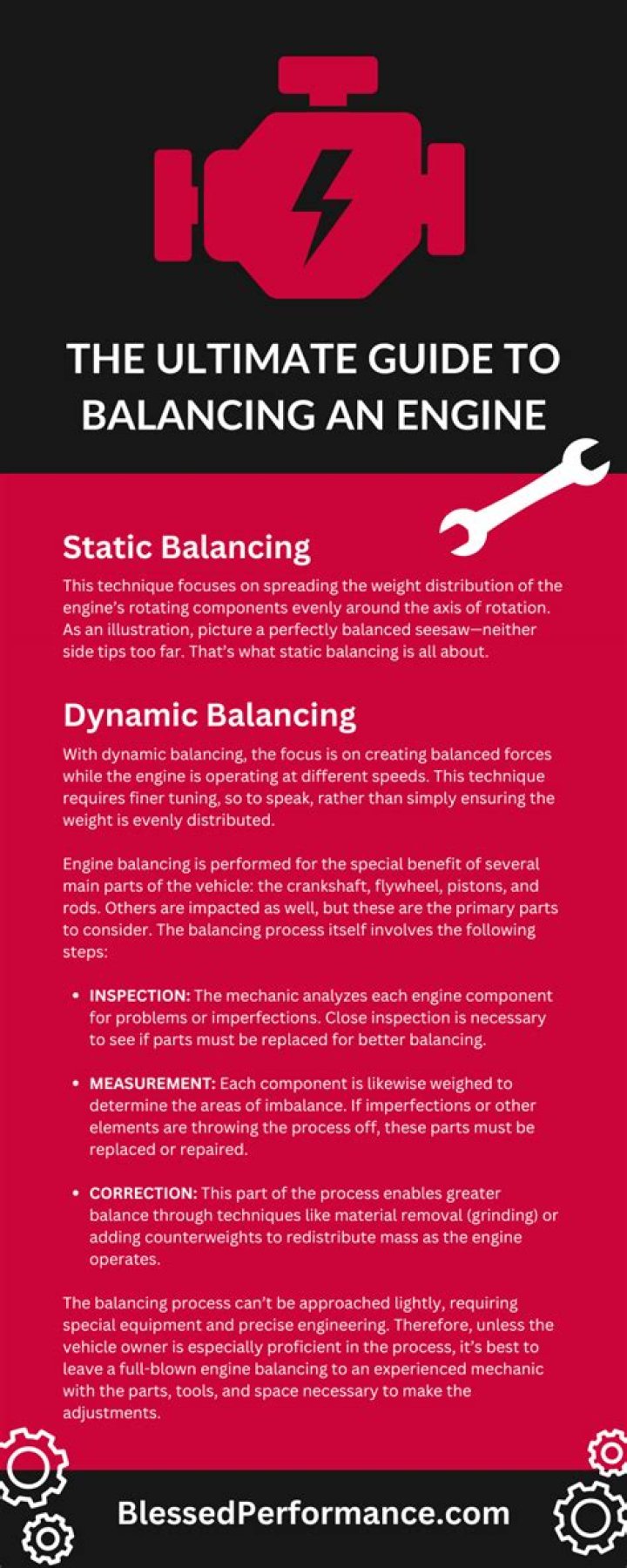

Is balancing an engine necessary?

Street engines do not necessarily need balancing. Except for a couple of rare occasions, almost no factory engine ever came fully balanced, even most "performance" engines weren't balanced. Balancing helps an engine run smoother with less vibration which creates less havoc on main bearings and helps things last longer.

.

Thereof, how important is engine balancing?

Weighing the Benefits of Engine Balancing. Balancing goes hand-in-hand with performance engine building. Balancing reduces internal loads and vibrations that stress metal and may eventually lead to component failure. A smoother-running engine is also a more powerful engine.

Subsequently, question is, how much does it cost to balance an engine? Balancing at the local shops and most internet suppliers is usually around $150-$175. If they don't do it in their own shop, they usually charge more.

Likewise, people ask, what does balancing an engine mean?

Balancing an engine means offsetting the weight of the pistons and rods. This involves adding or removing weight from the crankshaft. The Harmonic Balancer and/or the flexplate or flywheel can also be weighted.

Do I need to balance my rotating assembly?

It will be out of balance. It will still run and you may not notice anything but an engine put together with non factory parts in the rotating assembly should always be balanced for a smoother running engine and longer life before it beats the bearings out.

Related Question Answers

How much does it cost to balance a rotating assembly?

As for the cost, most balance jobs price in at around $200 and typically take up to two hours to complete—of course, this is assuming everything checks out clean. If weight has to be added for a perfect balance, you can expect the price and the amount of time it takes to get the job done to go up accordingly.

What is the difference between internally balanced and externally balanced?

Internally balance engines have weights added to the crankshaft counterweights to achieve proper balance in the rotating assembly. To achieve proper balance in the rotating assembly, externally balanced engines require the use of added weight to the flywheel/flexplate, or weight removed from one side of the flywheel.

Do Pistons need to be balanced?

If the rods and pistons are lighter than the crankshaft target bobweight, the counterweights will have to be drilled or milled to balance the engine. Likewise, if the pistons/rods are heavier than the target bobweight of the crank, heavy metal and/or external balancing will be required to achieve proper balance.

What does a balance shaft do in an engine?

Balance shafts are used in piston engines to reduce vibration by cancelling out unbalanced dynamic forces. The balance shafts have eccentric weights and rotate in opposite direction to each other, which generates a net vertical force. The balance shaft was invented and patented by British engineer Frederick W.

Are lighter pistons better?

“Lighter pistons are good for naturally aspirated engines looking for every possible advantage within the rules, or where lower horsepower levels are all that are going to be achieved and the lighter rotating mass can be used without risk of parts failure,” Ellinger explains.

Are v8 engines balanced?

A V8 can be thought of as 4 sets of V2s. When set at 90 degrees, each cylinder balances out the other. If the cylinder timing has been calculated and set properly than then engine is balanced. Engines like the V10 are inherently unbalanced because it is an odd number of cylinders on each bank.

What is the most balanced engine?

The most naturally balanced engine in its basic state is an Inline-6 cylinder. Due to the timing of the pistons, the six cylinders move in pairs but fire on alternating cycles. This results in a uniform and constant gap between each cylinder movement.

What is the most powerful v8 engine?

10 Most Powerful V8 Cars: Dodge Challenger SRT Hellcat – 707 Horsepower. The most powerful V8 engine ever offered in a production car produces 707 horsepower and 650 ft-lbs of torque. An eight-speed automatic transmission routes power to the rear wheels.

Why do 4 cylinders shake?

A lot of four-cylinder engines vibrate in Drive when you're stopped at a light. The reason is that by design, it's not as smooth as a six- or eight-cylinder engine. RAY: Four-cylinder engines vibrate because they produce fewer explosions per turn of the engine's crankshaft.

Why do single cylinder engines vibrate?

For single cylinder internal combustion engines, the main source of vibration is the inertia force and torque generated by reciprocating motion of crank connecting rod mechanism. In order to reduce its vibration, a balance shaft was designed according to the uniaxial balance method.

What is primary unbalanced force?

The primary unbalanced force may be considered as the component of the centrifugal force produced by a rotating mass m placed at the crank radius r. The centrifugal force produced due to the revolving mass B, has also a vertical component (perpendicular to the line of stroke) of magnitude This force remains unbalanced.

Why is a straight six balanced?

The inline-six is regarded as a supremely well-balanced motor. Because the motor is an inline configuration, there are no disruptive vibrations from banked angles. Unlike a v6, counter weights are needed to provide balance for a piston which might traveling in an unbalanced motion due to its banking position.

Are v6 engines balanced?

Balance and smoothness All V6 engines— regardless of the V-angle between the cylinder banks— are subject to a primary imbalance caused by each bank consisting of an inline-three engine, due to the odd number of cylinders in each bank. Straight-six engines and flat-six engines do not experience this imbalance.

What does balancing a crank do?

The real goal of balancing a rotating assembly is to make sure that the crankshaft counterweights offset the rotating and reciprocating forces created by pistons and rods. The mass of the crankshaft counterweights should equal 100 percent of the rotating mass and 50 percent of the reciprocating mass.

What is blueprinting a motor?

“To blueprint an engine means to prepare, specify and document all of the engine's tolerances, clearances, and materials based on a set standard.

What is a balanced and blueprinted engine?

In its most basis sense, a blueprinted engine is any engine built to a plan. You can build a fully balanced and blueprinted race engine, but it will be of little use as a daily driver. A more modest engine specification, such as . 040” over pistons, crankshaft rod and main journals turned no more than .

How do you measure bob weight?

A gram is a metric measurement equivalent to 11/428 ounce. An 1,800-gram bob weight is basically the amount of weight in each of the counterweights. However, you don't just add all the values up to determine bob weight. The formula is 100 percent of the rotating weight plus 50 percent of the reciprocating weight.

Is a 305 and 350 crank the same?

Yes it will work, and no they are not the same. The stroke is the same between the 305 and 350 cranks, BUT the 305 crank and rods are less beefy they are subtantially lighter than the 350 parts, but the 350 parts are alot stronger. Lighter means More HP right .

What parts are needed to balance an engine?

The main components in an engine to be considered for balance are the flywheel, bearings, pistons & rings, the piston rods, pins and the crank. Weight is removed from the heavier side of a component to achieve balance but sometimes weight has to be added to the lighter side.
