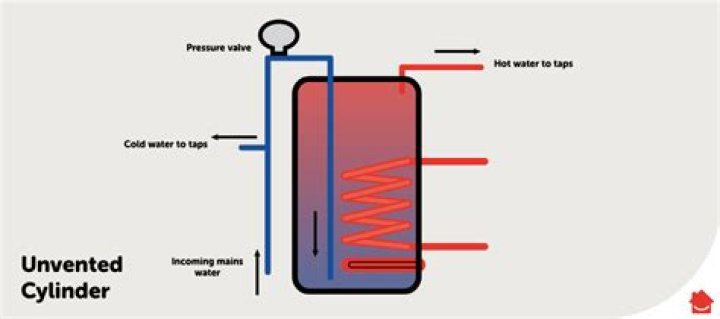

An unvented cylinder is connected directly to the mains water supply. It uses electricity or gas to heat water to a pre-set temperature. The act of heating water causes it to expand, which creates pressure within the cylinder. That pressure pushes the water outward throughout your home's pipes.
.
Likewise, people ask, how does an unvented hot water cylinder work?
In an unvented system there is no cold water tank – instead a sealed hot water cylinder is fed directly by the cold water mains. As soon as an outlet (i.e tap, shower) is used, the pressure of the incoming cold water displaces the hot water content in the cylinder towards the open outlet at mains pressure.
Furthermore, are unvented cylinders expensive to run? In fact, you'll find with an unvented cylinder, your heating and hot water will run so smoothly that you won't even have to think about it. The only real downside to the unvented cylinder option is the price, which is significantly more expensive than a storage combi.
Additionally, can I use an unvented cylinder in a vented system?
Yes you can. You just won't fit the expansion vessel and the inlet control group.
How does a Megaflo work?
An unvented direct Megaflo system uses mains cold water as its water supply. The immersion heater inside the cylinder heats the water using electricity until it reaches the temperate set by the cylinder's thermostat.
Related Question AnswersHow long do unvented cylinders Last?
And because they are so simple, the average length you can expect your unvented cylinder guarantee to last for is 25 years.Should I get an unvented cylinder?
If your mains pressure is low then you need to consider if introducing an unvented cylinder is the best option as it will provide water directly from the mains at the same low pressure. Some people with vented cylinders who have problems with low mains pressure will install an additional pump to boost the flow.Can I install an unvented cylinder?
The system must be installed by a 'competent person' who holds the relevant qualification for the installation of unvented hot water cylinders. The installer must be able to provide a card issued by a body such as the Institute of Plumbing (IoP) or the Construction Industry Training Board (CITB).What is the difference between vented and unvented hot water cylinders?
The main difference between a vented and unvented water storage cylinder is that an unvented hot water cylinder takes its water supply directly from the mains. You can get hot water out of an unvented cylinder at a much better pressure than a traditional vented cylinder as it is pressurised.What qualification do you need to work on unvented?
The Building Regulations Approved Document (section G3) requires an unvented hot water cylinder to be installed and maintained by a competent person. The G3 qualification, also known as an Unvented Hot Water qualification, provides plumbers with the knowledge & skills needed to work with such systems.How do you increase water pressure in an unvented system?
For a Mains (Unvented) 'High Pressure System' a booster pump and/or pressure vessels can be installed directly in line with the rising cold water mains supply, boosting water pressure and flow to the entire property, including the combination boiler or pressurised hot water cylinder system.Can you put a hot water tank in the loft?
by moving a vented hot water cylinder to the loft you must raise both the cold storage tank above it and also the central heating tank. it can be done but the only real way of knowing in your case would be to get a few heating engineers to come and give you a quote.What size cylinder Do I need unvented?
What Size of Hot Water Cylinder Do I Need?| Installation | Indirect Hot Water Cylinders | Direct Hot Water Cylinders |
|---|---|---|
| 2 Bedroom + Bath/Shower | 150 | 180 |
| 3 Bedroom + 2 Baths/Shower | 180 | 210 |
| 4 Bedroom + 2 Baths/Shower | 210/250 | 250/300 |
| Larger Properties | 300+ | 300+ |
How do you service a Megaflo cylinder?
Servicing:- Partially drain cylinder.
- Recharge air gap.
- Replenish water supplies.
- Check condition of safety valves.
- Check test electrical connections.
- Check operation of zone valve (CL models only)
- Check resistance of immersion heaters (DD models only)
- Check continuity and operation of thermostats (DD models only)
