The function of the motor control circuit is to control the AC motors. A higher voltage is required to start the motor, where a voltage lower than the starting voltage is required to operate. Changing the motor from a higher voltage to a lower voltage is the main function of a motor control circuit.

.

In this way, how does a motor control work?

Motor controllers are usually supplied with AC power. The power that comes in to a controller is at a set frequency. The motor controller first turns that AC to DC, then turns the DC back into AC at the right frequency. It uses a device called a rectifier to make DC current.

Additionally, what is the principle of motor control? Motor Control Theories include production of reflexive, automatic, adaptive, and voluntary movements and the performance of efficient, coordinated, goal-directed movement patterns which involve multiple body systems (input, output, and central processing) and multiple levels within the nervous system.

Likewise, what are 3 types of motor controls?

There are mainly there are three types of motor control circuits: Direct On Line Starter (DOL starter) Star Delta Starter.

There are different types of types to consider:

  • DOL vs Soft Starter vs Variable speed drive.
  • Rheostat vs.
  • Hard wired vs.
  • Hardwired Local vs.
  • 4-20mA vs.
  • Fixed speed vs.
  • Manual vs.

What are the two basic types of control circuits?

Control circuits can be divided into two major types: two-wire control circuits and three-wire control circuits. A two-wire control circuit can be a simple switch that makes or breaks connection to a motor (Ill. 1). A good example of this type of control is the single-phase manual starter shown in Ill.

Related Question Answers

Why is motor control important?

This pathway spans many disciplines, including multisensory integration, signal processing, coordination, biomechanics, and cognition. Successful motor control is crucial to interacting with the world to carry out goals as well as to regulate balance and stability.

What is control circuit diagram?

Control Circuits Diagrams Diagrams that show every electrical part in a circuit can become complex. Each symbol represents a single part of an electrical circuit, such as a limit switch or a relay.

What is a control circuit?

A control circuit is a special type of circuit used to control the operation of a completely separate power circuit. The motor is connected to a high voltage electrical supply of 2,400 volts.

What is a motor control system?

Motor Control. A motor controller is a device or set of devices that help in regulating the manner in which a motor works. The controller is also able to engage the motor into forward or reverse rotation as well as regulating and limiting the rotary speed, torque, and protecting against electrical fails and overloads.

What is the purpose of a motor driver?

A motor driver is just a set of high power switches that can handle the high power draw of a motor but can be controlled with almost no effort from the micro.

What is motor overload?

Motor overload occurs when a motor is under excessive load. The primary symptoms that accompany a motor overload are excessive current draw, insufficient torque and overheating. Excessive motor heat is a major cause of motor failure.

What is the difference between a motor driver and a motor controller?

' The TLDR is that a motor driver simply handles the power to drive the motors, whereas the logic and digital control has to be done by an external microcontroller or microprocessor, whereas a motor controller has all of the logic circuitry built in and can be controlled by a higher-level interface such as a PWM signal

What are the different types of motor starters?

Types of motor starter
  • Direct Online Starters.
  • Star-Delta Starters.
  • Autotransformer starters.
  • Soft starters.
  • VFD starters.
  • Resistance Stator starters.
  • Slip ring motor starters.

What is meant by servo motor?

A servomotor is a rotary actuator or linear actuator that allows for precise control of angular or linear position, velocity and acceleration. It consists of a suitable motor coupled to a sensor for position feedback. Servomotors are used in applications such as robotics, CNC machinery or automated manufacturing.

How many types of starters are there?

two

Why we use DOL starter?

The DOL starter is used when the 3 phase induction motor is of lower rating and the input is seemingly very low, nearing to 5V or so. Such motors can withstand the high incoming current, since the incoming current won't be that high as compared to the higher rating motors.

How does a start/stop switch work?

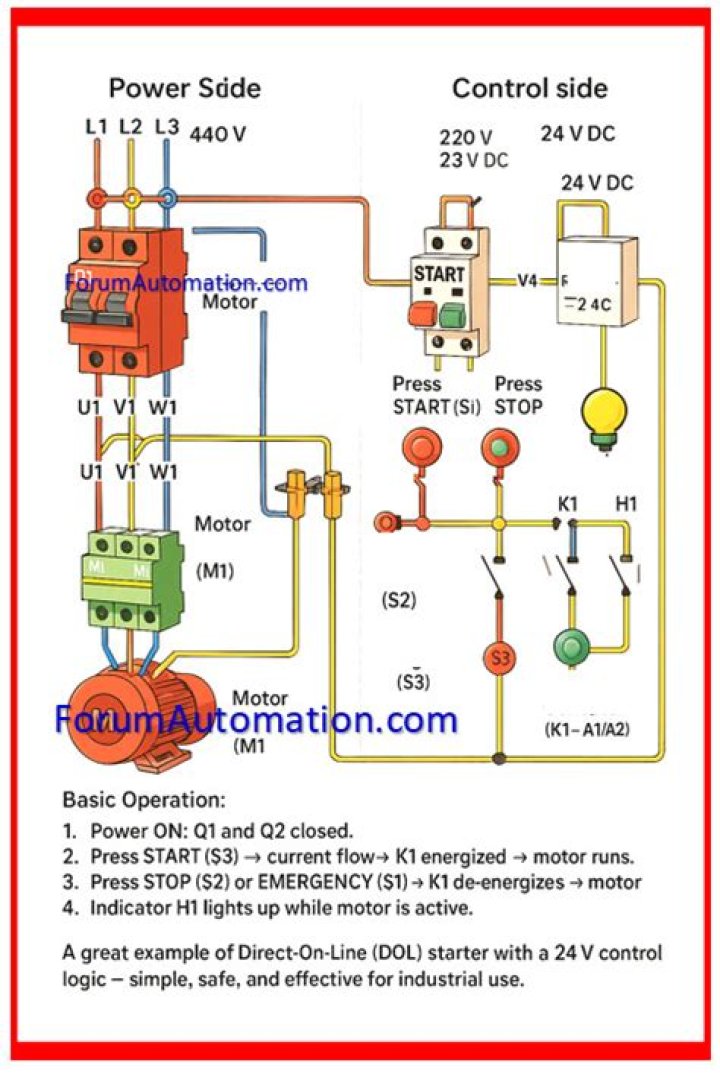

When you press the start button and the stop button is not pressed, the 24VDC relay energizes and it pulls in the R1 contactor that feeds three phase power to the motor. It also pulls in a contact that is tied in parallel with the start button giving it another path for current flow once your release the start button.

What is a thermal overload?

The thermal overload is designed to open the starting circuit and thus cut the power to the motor in the event of the motor drawing too much current from the supply for an extended time. The overload relay has a normally closed contact which opens due to heat generated by excessive current flowing through the circuit.

How do you make a single phase motor go forward and reverse?

Once started, a single phase induction motor will happily run in either direction. To reverse it, we need to change the direction of the rotating magnetic field produced by the main and starter windings. And this can be accomplished by reversing the polarity of the starter winding.

What is direct on line?

Direct ON Line starter is the simplest kind of starter that connects the motor directly to the power supply through a three-phase contactor. The Direct on Line Starter usually consists of a Contactor, Circuit Breaker and an Overload relay for protection against any damage.

How does a forward reverse motor work?

The forward reverse motor control is used in a system where forward and backward or upward and downward movement in the operation are needed. Forward and Reverse Operation of motor can be obtained by interchanging any two of its three terminals.

How do you check a motor problem?

Start by completely disconnecting the spindle motor from all power sources. Check each wire, including T1, T2, T3 and the ground wire. If the reading is infinite, your motor should be fine. If you get a zero reading or any continuity reading, you have either a motor problem or a cable problem.

How do you know when a motor needs to be repaired?

Here are three common signs that your electric motor may need repair.
  1. Your Motor is Giving Off Excessive Heat. In some cases, you can see that an electric motor is giving off excessive heat.
  2. Dirty Housing Openings. Dirt, dust and residue should not be making their way into the motor housing area.
  3. Excessive Vibration.

How do you troubleshoot a 3 phase motor?

How to Troubleshoot a 3-Phase Electric Motor
  1. Take input voltage to the motor using the volt ohmmeter. The motor-specified voltage must be present on all three phases.
  2. Examine the motor's electrical connections and terminals.
  3. Remove motor voltage and disengage the motor from the machine that it is running.
  4. Check the motor for heat or burnt smell.
