The first is if the corresponding angles, the angles that are on the same corner at each intersection, are equal, then the lines are parallel. The second is if the alternate interior angles, the angles that are on opposite sides of the transversal and inside the parallel lines, are equal, then the lines are parallel.
.
Thereof, what is a parallel angle?
Angles and parallel lines. When two lines intersect they form two pairs of opposite angles, A + C and B + D. Another word for opposite angles are vertical angles. Vertical angles are always congruent, which means that they are equal. When a transversal intersects with two parallel lines eight angles are produced.
Secondly, when lines are parallel the alternate angles are? If two parallel lines are cut by a transversal, the alternate interior angles are congruent. If two lines are cut by a transversal and the alternate interior angles are congruent, the lines are parallel. Alternate Exterior Angles: The word "alternate" means "alternating sides" of the transversal.
Similarly one may ask, are parallel angles the same?
If two parallel lines are cut by a transversal, the corresponding angles are congruent. If two lines are cut by a transversal and the corresponding angles are congruent, the lines are parallel.
How do you prove two lines are parallel without angles?
We have these theorems which may be useful in proving this:
- If two lines have a transversal which forms alternative interior angles that are congruent, then the two lines are parallel.
- If two lines have a transversal which forms corresponding angles that are congruent, then the two lines are parallel.
What are the names of angles on parallel lines?
If two parallel lines are cut by a transversal as shown in the next diagram, we refer as follows to the angles formed:- z and x (or u and v) are alternate angles.
- x and y are corresponding angles.
- u and x (or z and v) are allied (or co-interior) angles.
- y and z are vertically opposite angles.
Are parallel lines coplanar?
Two lines are parallel lines if they are coplanar and do not intersect. Lines that are not coplanar and do not intersect are called skew lines. Two planes that do not intersect are called parallel planes.What is an example of parallel lines?
For example, squares, rectangles, and parallelograms have sides across from each other that are parallel. Each line has many parallels. Any line that has the same slope as the original will never intersect with it. Lines that would never cross, even if extended forever, are parallel.How do you prove parallel?
The first is if the corresponding angles, the angles that are on the same corner at each intersection, are equal, then the lines are parallel. The second is if the alternate interior angles, the angles that are on opposite sides of the transversal and inside the parallel lines, are equal, then the lines are parallel.Can parallel lines be different lengths?
Parallel lines remain the same distance apart over their entire length. No matter how far you extend them, they will never meet.Are corresponding angles equal?

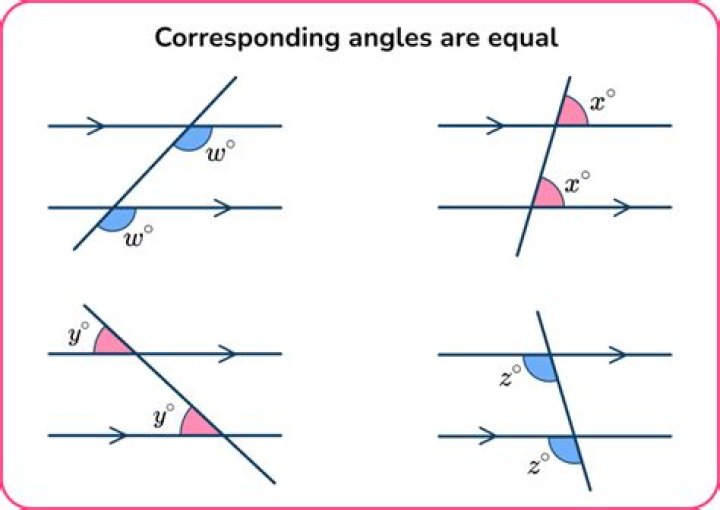

Corresponding Angles. When two lines are crossed by another line (which is called the Transversal), the angles in matching corners are called corresponding angles. When the two lines are parallel Corresponding Angles are equal.What is a perpendicular line?
In elementary geometry, the property of being perpendicular (perpendicularity) is the relationship between two lines which meet at a right angle (90 degrees). A line is said to be perpendicular to another line if the two lines intersect at a right angle.What are the angle relationships?
Angle Relationships. For example, when two lines or line segments intersect, they form two pairs of vertical angles. When two parallel lines are intersected by a transversal, complex angle relationships form, such as alternating interior angles, corresponding angles, and so on.What are the rules of angles on parallel lines?
Angles in parallel lines- When a pair of parallel lines is cut with another line known as an intersecting transversal, it creates pairs of angles with special properties.
- Corresponding angles are equal. The lines make an F shape.
- Alternate angles are equal. The lines make a Z shape which can also be back to front.
What is the C angle called?
Corresponding angles are equal. (h and d, f and b, e and a are also corresponding). Alternate angles are equal. (c and f are also alternate). Alternate angles form a 'Z' shape and are sometimes called 'Z angles'.What are vertically opposite angles?
Vertically Opposite Angles. Vertically Opposite Angles are the angles opposite each other when two lines cross. "Vertical" in this case means they share the same Vertex (corner point), not the usual meaning of up-down.How do you solve congruent angles?
Two triangles are congruent if they have: exactly the same three sides and. exactly the same three angles.There are five ways to find if two triangles are congruent: SSS, SAS, ASA, AAS and HL.
- SSS (side, side, side)
- SAS (side, angle, side)
- ASA (angle, side, angle)
- AAS (angle, angle, side)
- HL (hypotenuse, leg)
What are the angle rules?
Angles- The corresponding angles are equal.
- The vertically opposite angles are equal.
- The alternate interior angles are equal.
- The alternate exterior angles are equal.
- The pair of interior angles on the same side of the transversal is supplementary.
Which angles are congruent?
Congruent angles are two or more angles that have the same measure. In simple words, they have the same number of degrees. It's important to note that the length of the angles' edges or the direction of the angles has no effect on their congruency. As long as their measure is equal, the angles are considered congruent.How many types of angles are there?
In geometry, there are three types of angles:- acute angle-an angle between 0 and 90 degrees.
- right angle-an 90 degree angle.
- obtuse angle-an angle between 90 and 180 degrees.
- straight angle-a 180 degree angle.
